Xypex Admixtures are added to the concrete at the time of batching, making it easy to install, and unlike other waterproofing methods, require less trades on site and shorten the time required for installation. The Admix C-Series has been specially formulated to meet varying project and temperature conditions.

Admix C-500/C-500 NF is formulated to have minimal or no effect on setting time. Admix C-1000/C-1000 NF is formulated for concrete mix designs where a normal or mildly delayed set is desired. Admix C-2000/C-2000 NF is designed for warmer climates and projects where a slower hydration rate is typically required. Admix C-500 NF Red and Admix C-1000 Red contains a red oxide pigment as a quality assurance measure for precasters.

Xypex Admixtures now contain the latest in Xypex innovation, the Visual Detection System (VDS). It is designed to confirm the presence of Xypex Crystalline Waterproofing Admixture in hardened concrete. To learn more about VDS, click here: VDS

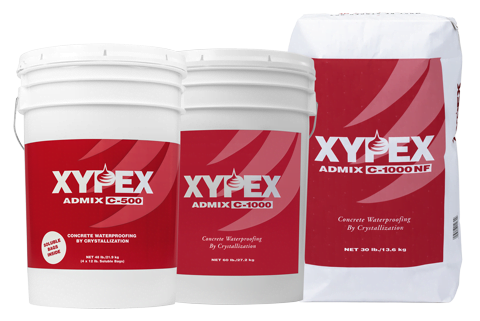

For ease of use, Xypex Admix is available in pails, bags or soluble bags.
Product Data
C-500/C-500 NF VIEW PDF
C-1000/C-1000 NF VIEW PDF
C-2000 VIEW PDF
C-2000 NF VIEW PDF
C-500 NF Red VIEW PDF
C-1000 RED VIEW PDF
Safety Data
Safety Data VIEW PDF
Brochure
Brochure VIEW PDF

Advantages of Xypex

  • Integral part of concrete matrix
  • Hydrostatic pressure

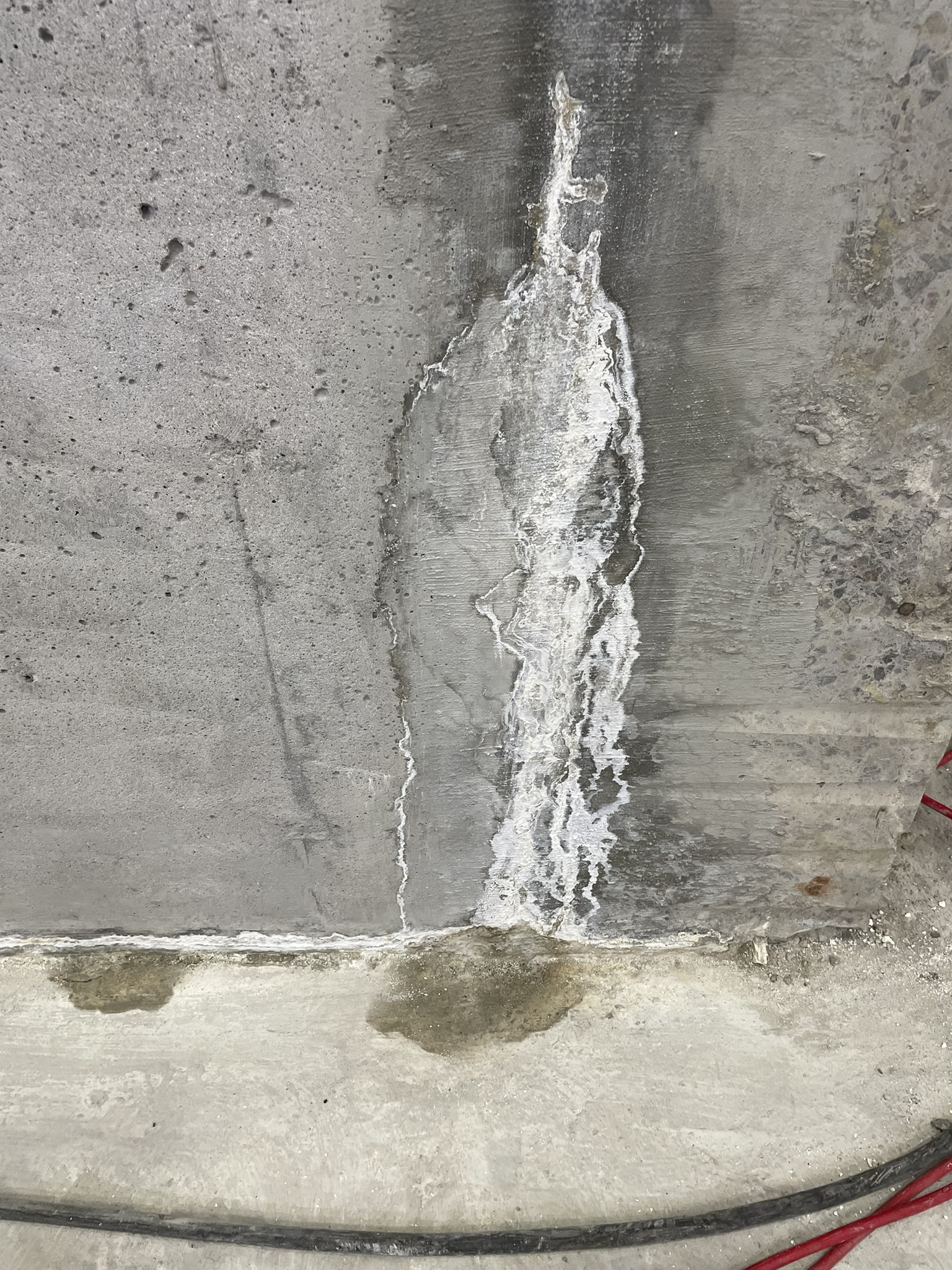

  • Crack healing
  • Chemical resistance
  • Breathable
  • Non-toxic
  • No VOCs
  • Is Permanent solution requiring no further maintenance
  • Economical
  • Shortens construction scheduled
  • Extends service life on concrete
  • Contains Visual Detection System

Recommended for

  • Reservoirs and Water Holding Structures
  • Water and Wastewater Treatment Plants
  • Manholes and Pump Stations
  • Precast Concrete
  • Foundations
  • Basements and Underground Parking Structures
  • Tunnels and Subway Systems
  • Secondary Containment
  • Water Marine Structures
  • Swimming Pools

*Refer to our Product Data for specifics

Packaging

Xypex Admix C-Series is packaged in convenient sizes of various types of packaging, including repulpable paper bags and soluble bags. Contact your local Xypex Technical Services Representative or dealer for details and availability.

Dosage Rate

Dosage will vary. Please refer to product data of the Admix product for specific dosage details.

Storage

Xypex products must be stored dry at a minimum temperature of 45ºF (7ºC). Shelf life is one year when stored under proper conditions.

Admix Application Details

Xypex Admix C-500/C-500 NF Application & General Information VIEW FILE
Xypex Admix C-1000/C-1000 NF Application & General Information VIEW FILE
Xypex Admix C-2000 Application & General Information VIEW FILE
Xypex Admix C-2000 NF Application & General Information VIEW FILE
Xypex Admix C-500 NF RED Application & General Information VIEW FILE
Xypex Admix C-1000 RED Application & General Information VIEW FILE

General Resources

Product Data - C-500/C-500 NF VIEW FILE
Product Data - C-1000/C-1000 NF VIEW FILE
Product Data - C-2000 VIEW FILE
Product Data - C-2000 NF VIEW FILE
Product Data - C-500 NF RED VIEW FILE
Product Data - C-1000 NF RED VIEW FILE
Safety Data (SDS) – Cementitious Products VIEW FILE
Specifications – Additive VIEW FILE
Schematic Drawings – Additive VIEW FILE
Admix C-Series Brochure VIEW FILE
Health Product Declarations (HPD) Certificate VIEW FILE
Environmental Product Declarations (EPD) - Admix C500 VIEW FILE
Environmental Product Declarations (EPD) - Admix C500 NF VIEW FILE
Environmental Product Declarations (EPD) - Admix C1000 VIEW FILE
Environmental Product Declarations (EPD) - Admix C1000 NF VIEW FILE

Lascelles Wharf Facility Upgrade

Geelong, Australia

In 1995, the Lascelles Wharf facility in Geelong, Australia, underwent an upgrade to address the degradation of its existing structures. The facility replaced these elements with durable slabs designed to withstand the conditions of a high-wear, chemically aggressive marine environment. The design mix for these slabs incorporated Xypex Admix C-Series to meet the project’s requirements, ensuring strength, durability, and water impermeability.

Project Sheet
Project Sheet VIEW PDF

Kuhankosken Vesivoimalaitos Hydropower Plant

Laukaa, Finland

The Kuhankosken Vesivoimalaitos hydropower plant project in Laukaa, Finland, involved constructing a new plant adjacent to an existing one, including new underground tunnels. Besides the typical challenges of meeting stringent waterproofing requirements for the dam and other hydropower structures due to high hydrostatic pressures, the project team also faced the complexities of seamlessly integrating the new plant with the old one while adhering to a strict deadline.

Project Sheet
Project Sheet VIEW PDF

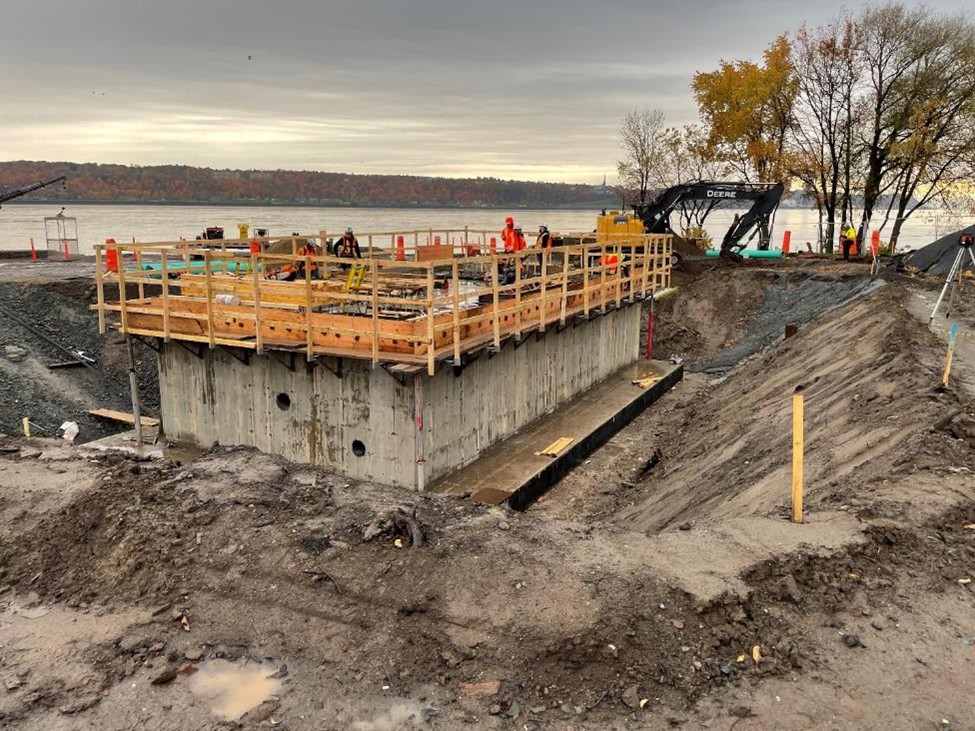

Water Treatment Plant Sainte-Félicité

Sainte-Félicité, Canada

The municipality of Sainte-Félicité, Quebec, Canada, constructed a new water treatment plant, including a new tank, service building, and the development and connection of two wells. Xypex’s advanced crystalline technology was used to ensure permanent waterproofing and protection of critical concrete infrastructure, particularly the reservoir’s wet well foundations and concrete apron, providing lasting durability and self-healing capabilities within the concrete structure.

Project Sheet
Project Sheet VIEW PDF

Influent Channel & Lift Station Rehabilitation

City of Mulberry, USA

For the wastewater treatment plant upgrades at Lift Station 1-2 in the City of Mulberry, Florida, Vogel Brothers Contractors and Pennoni Engineering delivered a durable concrete waterproofing and protection solution using Xypex Bio-San and Xypex Admix C-500, both known for their excellence in wastewater environments.

Project Sheet
Project Sheet VIEW PDF

Al Amria Petrolum Company, Wastewater Tanks

Alexandria, Egypt

In a collaborative effort, the Al Amria Petroleum Company, under the Egyptian Government, built new wastewater tanks in Alexandria, Egypt, utilizing Xypex Admix C-1000 NF for waterproofing. This project targeted the containment of wastewater with pH levels from 3 to 4, leveraging Xypex's ability to enhance concrete durability through crystalline growth, which provides an effective barrier against water exfiltration and chemical resistance.

Project Sheet
Project Sheet VIEW PDF

Projects Using This Product

General Construction Foundation

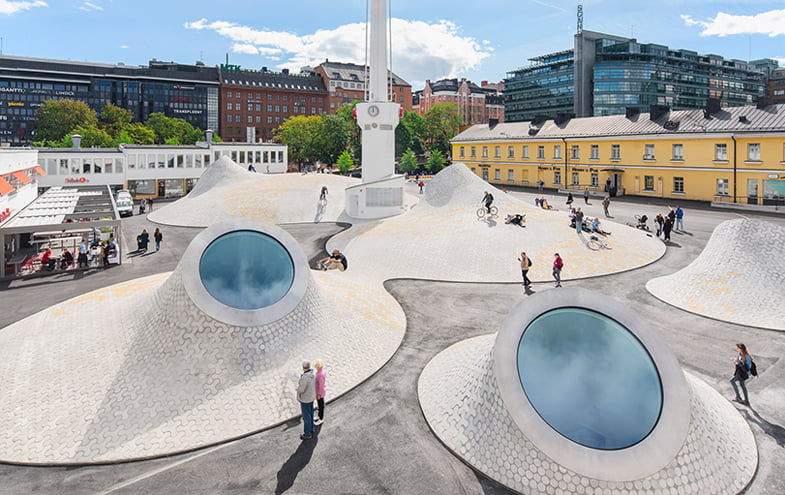

Amos Rex Art Museum

Finland
The design team for the new Amos Rex Museum considered many solutions for waterproofing the underground art galleries and storage areas but ultimately chose Xypex Admix C-1000 NF to protect against the high water table because of its proven track record in similar high-profile projects worldwide.
Tunnels

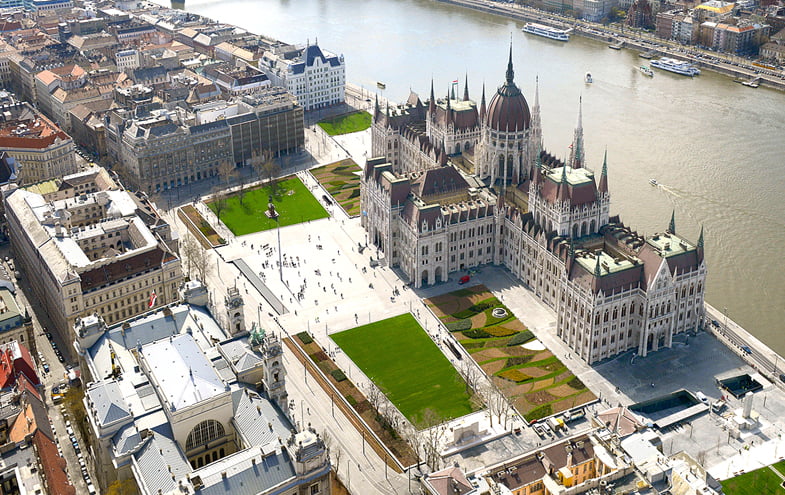

Budapest Pedestrian Tunnel

Hungary

The key challenges in building this pedestrian tunnel were the high water table created by the close proximity of the Danube River and addressing the need to prevent interruption of traffic flow on the street between the buildings. The street is both a major thoroughfare for cars as well as a street car line. The tunnel needed to be water tight to create a comfortable pedestrian space and the traffic needed to be maintained throughout the construction phase.

Bridges

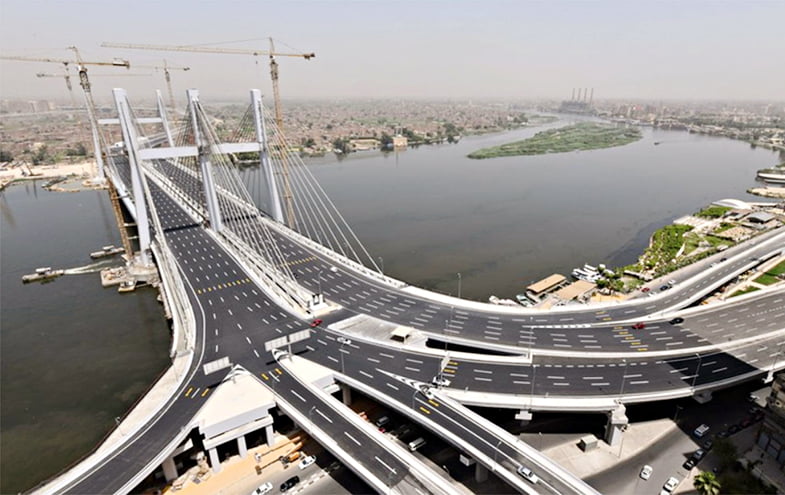

Rod el Farag Axis Bridge

Egypt

More than one million cubic meters of concrete was used to build the bridge, which was used in the bridge decking, girders, and six 92 m (302 ft) tall concrete towers that support 160 steel support cables. One of the key challenges for the bridge designers was how to adequately protect the critical concrete structures from the effects of air pollution and the moist riverine environment.

Water Treatment Plants

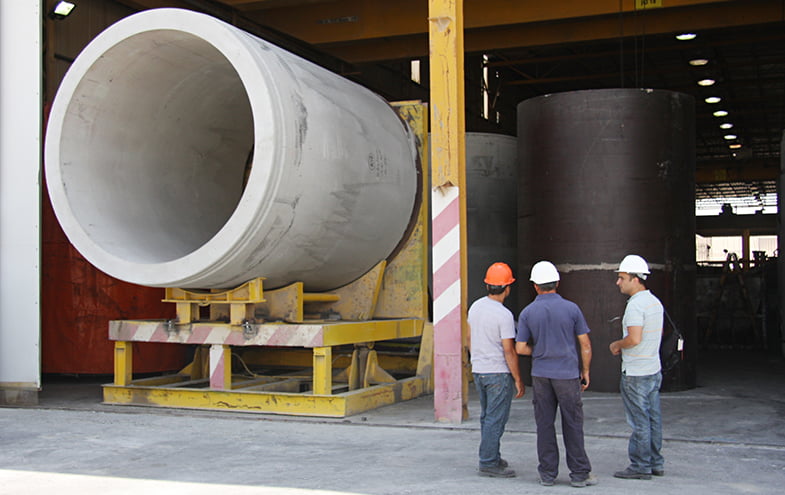

Sorek Desalination Plant

Israel

After thorough investigation, the project design team chose to include 1.5% of Xypex C-500 NF Admixture in the concrete mix to both heal cracks as well as improve the overall chloride durability of the pipe. As the pipe was jacked into place visible leaking was seen in the pipe sections. All visible leakage was seen to heal and the project became so impressed with Xypex’s crack healing ability that the use of the Xypex Admix was extended in the project to include most of the water processing and holding structures as well as the pipe.

Precast Structures

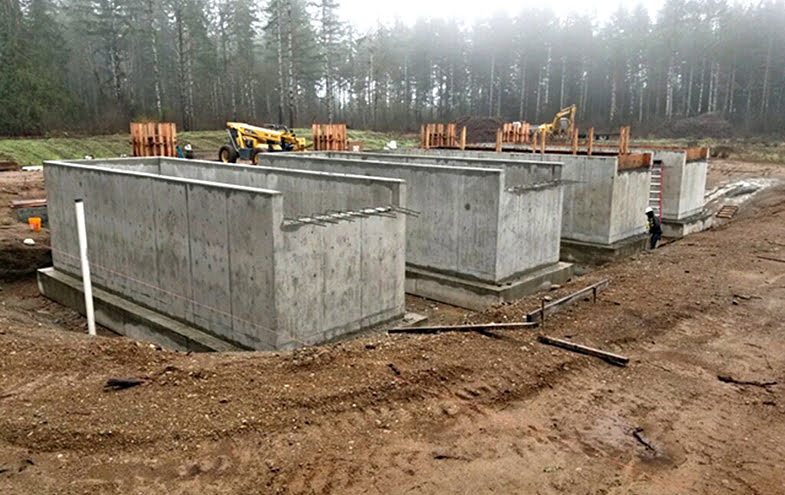

Taylor Shellfish Processing Facility

USA
Xypex Admix C-500 is providing built-in permanent protection against the harsh saltwater environment in the new wet processing facilities at Taylor Shellfish Farms. Saves construction time and eliminates future maintenance.
Wastewater Collection & Treatment

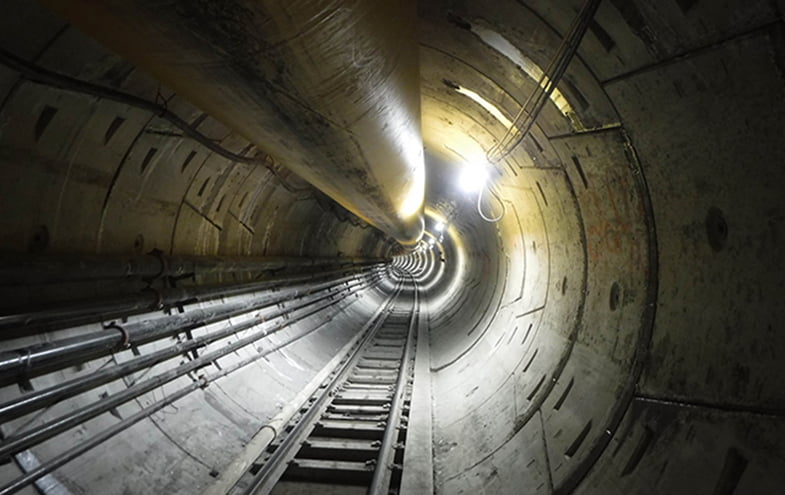

Blacklick Creek Sanitary Interceptor Sewer

USA

To further protect the concrete tunnel from the harsh conditions expected during its projected 100-year lifespan and to ensure watertight operation, the high performance concrete mix was enhanced with Xypex Admix C-500.

Marine Structures

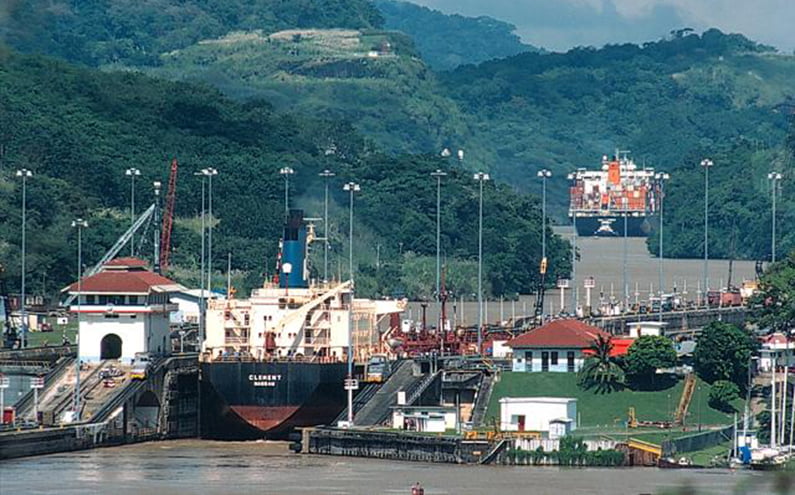

Panama Canal – Chamber Walls & Gatun Lock Culverts

Panama

The aggressive marine environment surrounding the over 80-year-old Panama Canal had caused substantial deterioration of the canal’s concrete. Xypex Admix C-2000 was used in the concrete repair mortar to rehabilitate the walls of the gatun lock chambers and conduits.
