Automated Dosing Machine
(ADM)
A SMARTER FUTURE FOR CONCRETE PRODUCTION
With the ADM, Xypex is redefining how crystalline waterproofing technology is delivered — bringing automation, efficiency, and precision to every pour. From large-scale ready-mix operations to precast production lines, the ADM embodies Xypex’s vision for a smarter, safer, and more sustainable future in concrete innovation.
The Xypex Automated Dosing Machine (ADM) consists of two units: the powder dispensing system and the conveyor.
The Xypex Automated Dosing Machine (ADM) marks a transformative step in how Admix products are measured, handled, and delivered.
Designed to solve long-standing challenges in the ready-mix industry, the ADM combines automation, precision, and safety to enhance efficiency, consistency, and trust in every batch.
With reliable dosing and streamlined operation, producers achieve higher-quality concrete while reducing risk, waste, and manual effort.
ADM
KEY FEATURES
Enhanced Safety
Minimizes worker exposure to chemicals and handling risks, improving jobsite safety and regulatory compliance.Precision Dosing
Advanced automation eliminates human error, ensuring consistent and repeatable dosing accuracy.Operational Efficiency
Streamlines batching and handling, reducing manual labor and improving plant productivity.Consistent Performance
Guarantees uniform Admix delivery for superior mix integrity and waterproofing reliability.Scalable Design
Offers both high-capacity and portable models to meet varying production needs.Cost Optimization
Reduces material waste and supports faster loading — up to a 10-second fill for a super sack.Cost Optimization
Reduces material waste and supports faster loading — up to a 10-second fill for a super sack.Future-Ready Innovation
Modular, adaptable platform designed to evolve with customer requirements and new dosing technologies.
ADM

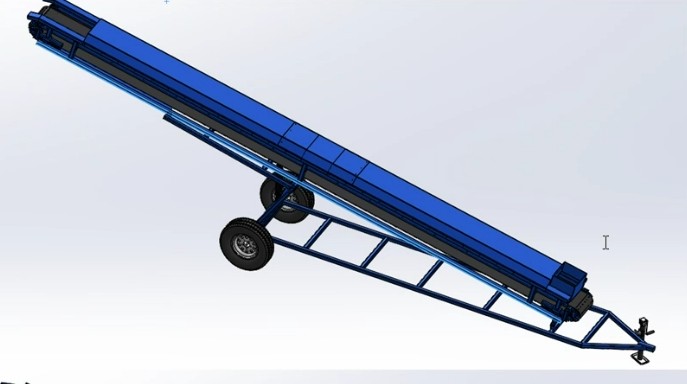

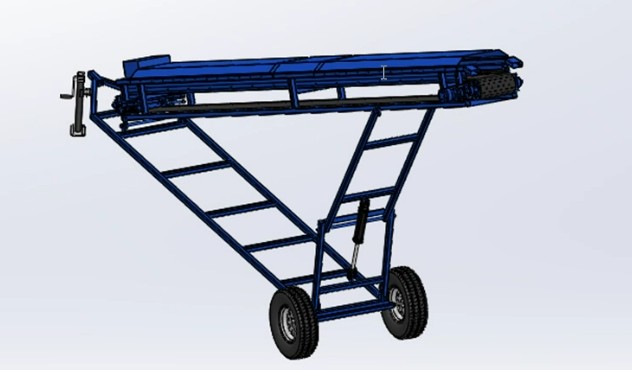

CONVEYOR KEY FEATURES
Can be used with current Xypex packaging.
On a hitch and can be easily transported to different plants.
The belt can be raised and lowered by hydraulic switch.
Conveyor footprint is 30’ x 4’ 3”.
Bag counter will print ticket showing how many bags were added and the total lbs.
- TC-24 2025 Trailer Conveyor
- 24′ Long 14″ Wide Conveyor
- Discharge Height 13’6″ When Elevated 1 ft. via Integrated Jacks
- Powered by 14HP Pull Start Gasoline Engine w/ Hydraulic Pump and Motor
- Includes Belt Cover to Keep Belt Dry and Protect from UV degradation
- Built on Custom Single Axle Trailer
- DOT Compliant Trailer Lights
ADM

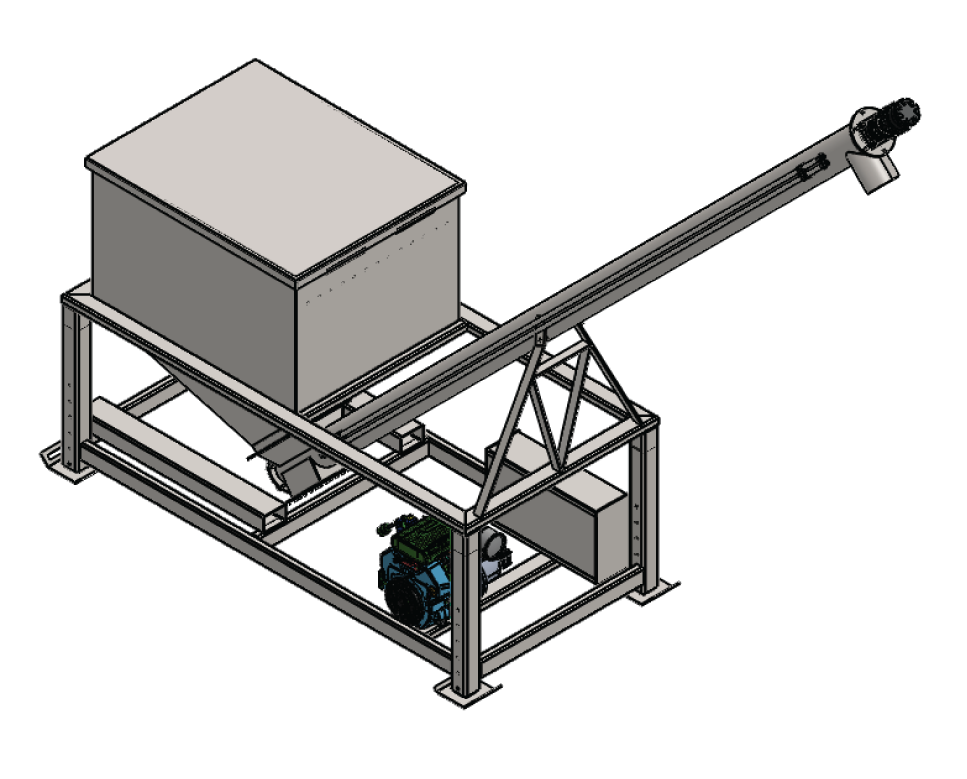

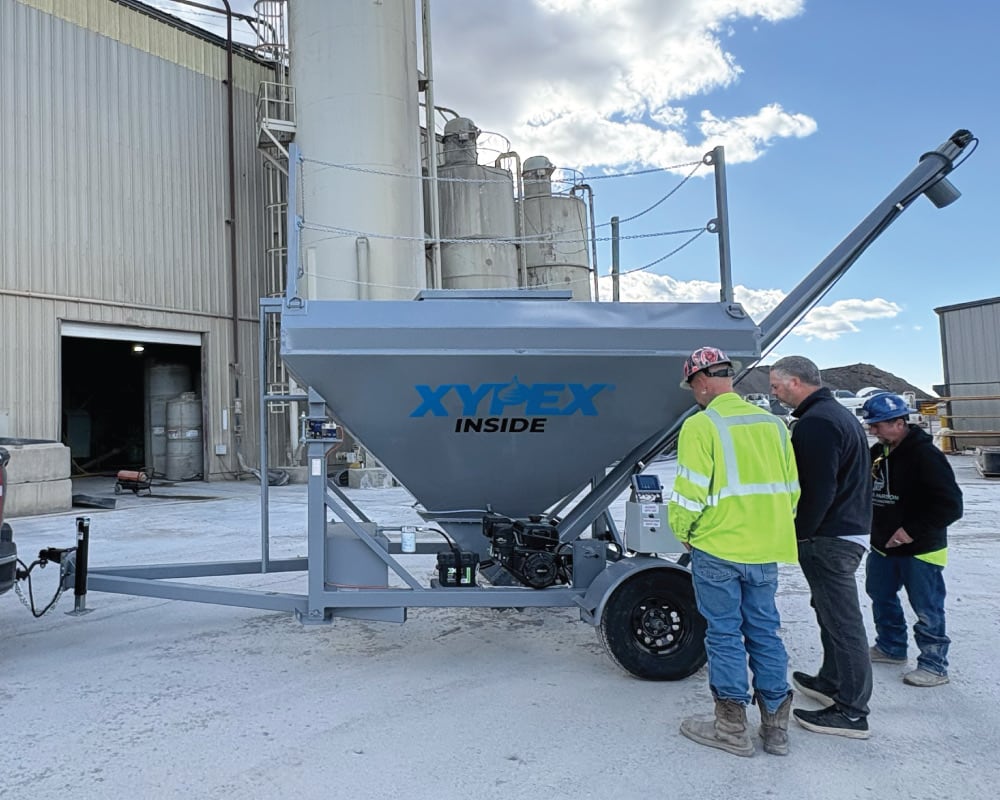

POWDER DISPENSING KEY FEATURES
Hopper is on load cells and doses by lbs.
Can be tied into batching software or run independent.
Xypex C-500 NF is supplied in 2,200 lbs. super sack.
One super sack can dose up to 400 cubic yards before needing to be refilled.
Footprint is 16’ long (with auger) x 5’4” wide.
Printed ticket is produced after dosing to show total amount of lbs added to truck.
- Bin Capacity 3 ton w/Opening for Super Sacks
- Hinged Lid & Bag Breaker – Powered by Upgraded Electric Start Gasoline Engine w/Hydraulic Pump w/Upgraded Motor & Flow
- Controller – 6” Diameter Auger – Air Vibration Pads
- Brakes & 2-5/16” Adjustable Coupler
- 7SL-12 Load Scales w/Indicator (digital readout)
- Thermal Printer VKP 80 Custom America – complete with enclosure for protection
For further information contact: [email protected]
